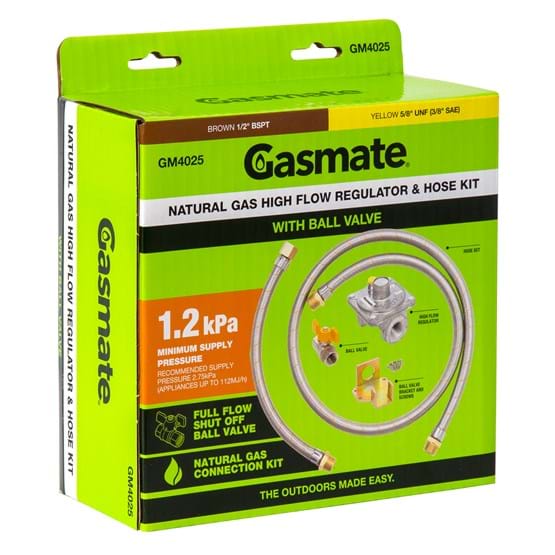

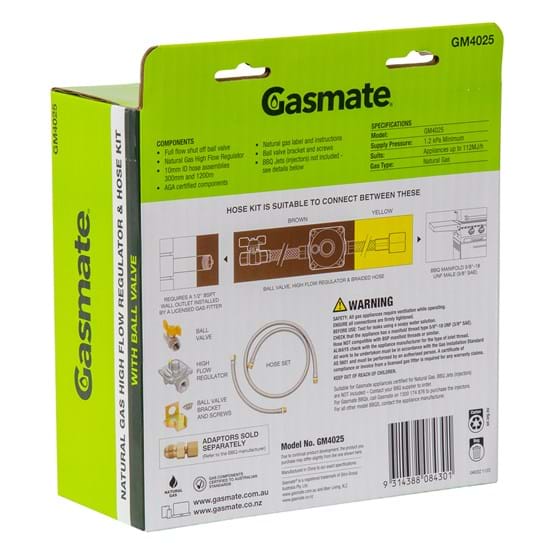

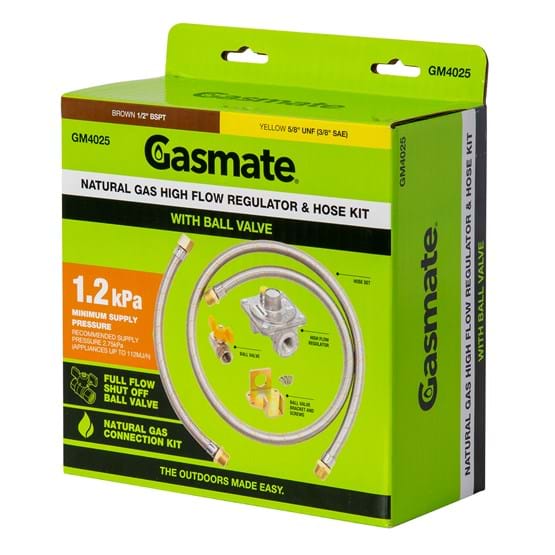

NATURAL GAS HIGH FLOW REGULATOR & HOSE KIT
MODEL NO. GM4025
Use this kit if you would like to run your BBQ off natural gas. If your BBQ is not natural gas ready, the conversion must be performed by a licensed Plumber or Gas Fitter and only on natural gas approved BBQ's, which ensures AGA safety standards and regulations are followed and your BBQ warranty is maintained.
Even if your BBQ is natural gas ready, we recommend all connections should be performed by a licensed Plumber or Gas Fitter.
This kit is supplied complete with a regulator (1kPa), braided hose and ball valve, this kit is recommended for reticulated main gas supply pressure of at least 1.0kPa.
Features
|

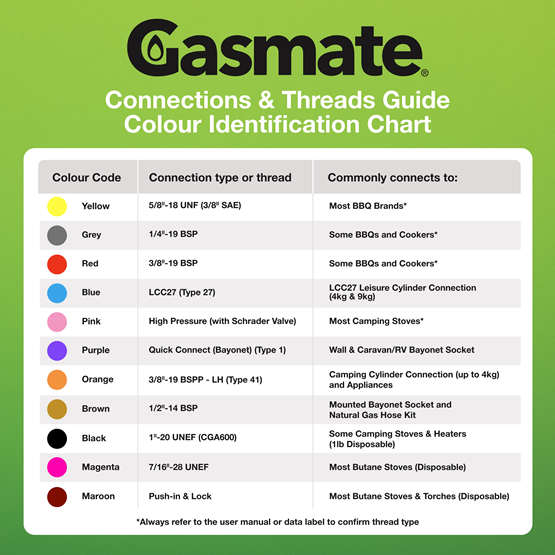

Designed to suit most brands of 2 - 6 burner BBQs with a 5/8”-18 UNF (3/8” SAE) Male Manifold Thread |
|

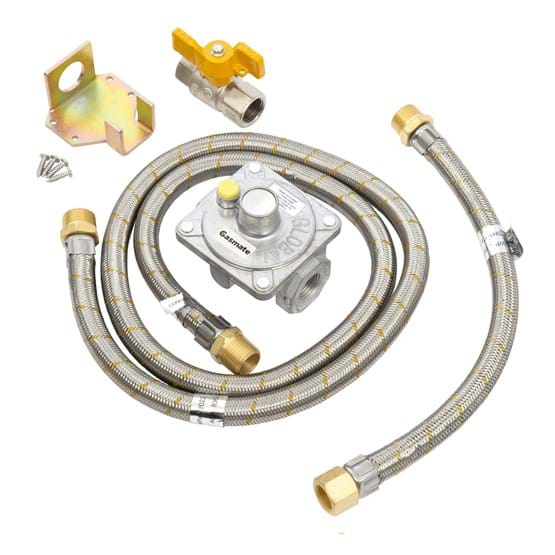

This kit is supplied complete with ball valve, hose and regulator |
|
Requires installation by licensed installer and if not natural gas ready, jets to be supplied by manufacturer upon request |
Specifications
| Description |
Natural Gas High Flow Regulator & Hose Kit with Ball Valve |
| Model Number |
GM4025 |
| Supply Pressure |
1.2 kPa |
| Suits |
Appliances up to 112MJ |
| Gas Type |
Natural Gas |
| Hose Assemblies (mm) |
300 and 1200 |
| Connection Type |
Requires 1/2” BSPT wall outlet - then connects to - 5/8”-18 UNF (3/8” SAE) Male BBQ Manifold Thread via the Ball Valve/High Flow Regulator and Braided Hose. |
